Características del producto:

Código: 19078
INTEL775 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011 / 2011-v3 AMD AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+

Características detalladas del producto:

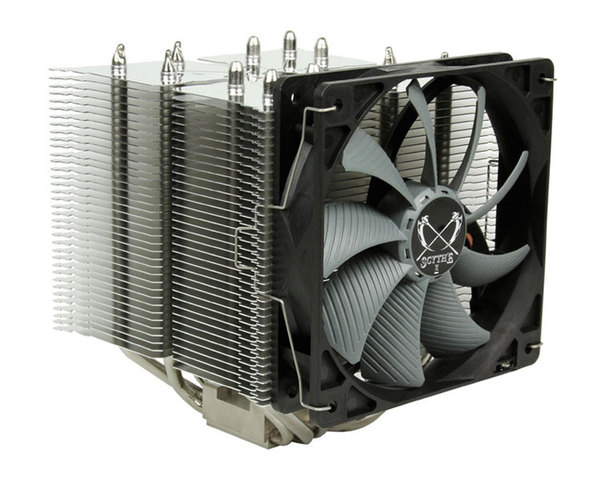

Modelname: Ninja 4 CPU Cooler. Modelnumber: SCNJ-4000. Compatibility:. Intel®:.

.
• Socket LGA775
.
• Socket LGA1150
.
• Socket LGA1151
.
• Socket LGA1155
.
• Socket LGA1156
.
• Socket LGA1366
.
• Socket LGA2011 / 2011-v3 (Square ILM)
.

. AMD®:.

.
• Socket AM2
.
• Socket AM2+
.
• Socket AM3
.
• Socket AM3+
.
• Socket FM1
.
• Socket FM2
.
• Socket FM2+
.

. Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.. Overall dimensions: 130 x 153 x 155 (including fan - more dimensions). Weight: 780 g / 900 g inklusive Lüfter. Heatpipenumbers / -diameter: 6 / 6mm. Accessories: Installation material for Intel® and AMD® Socket, thermal grease, second pair of fan clips, installation manual.. Base plate material: nickel-plated copper (additional information). Fan - Specifications. Modelname: GlideStream 120 PWM. Model-Nr.:SY1225HB1212H-PS (3 operations modes H/M/L). Fan dimensions: 120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 mm. Noise Level: .

.
• L: 4,0 ~ 12,5 dBA
.
• M: 4,0 ~ 23,5 dBA
.
• H: 4,0 ~ 29,5 dBA
.

. Air Flow: .

.
• L: 21,97 ~ 73,90 m³/h | 12.93 ~ 43.50 CFM
.
• M: 21,97 ~ 73,90 m³/h | 12.93 ~ 63.73 CFM
.
• H: 21,97 ~ 73,90 m³/h | 12.93 ~ 84.64 CFM
.

. Fan Speed: .

.
• L: 300 upm (±300) ~ 800 upm (±10%
.
• M: 300 upm (±300) ~ 1150 upm (±10%)
.
• H: 300 upm (±300) ~ 1500 upm (±10%)
.

. Voltage / Amperage: DC 12V / 0,22A. Static Pressure:.

.
• L: 0,69 ~ 4,90 Pa / 0,07 ~ 0.50 mmH²O
.
• M: 0,69 ~ 10,40 Pa / 0,07 ~ 1.06 mmH²O
.
• H: 0,69 ~ 17,55 Pa / 0,07 ~ 1.79 mmH²O
.
• Bearing Type: Sleeve Bearing
.
