ORDENADORES / BAREBONES / MiniPC - NetTop

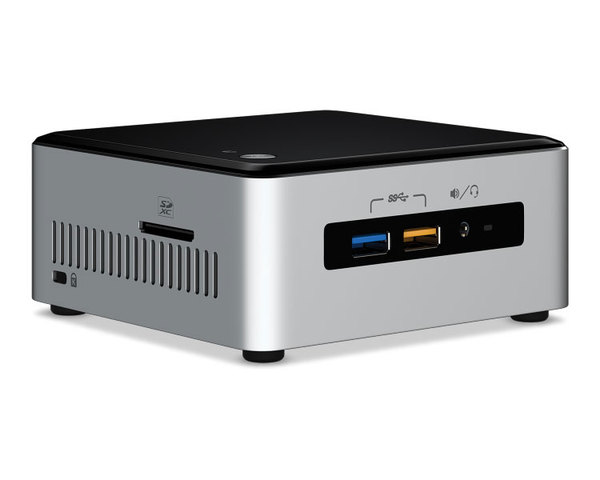

BAREBONE NUC INTEL BOXNUC6i3SYH BLACK

Producto en oferta
Precio unitario: 318,42€
Precio anterior: 330,62€

Selecciona cantidad:

PRECIO TOTAL: 318,42€

Características del producto:

Código: 19249
INTEL i3-6100U / INTERNA:1x M.2SSD, 1x2.5" / 1xHDMI / 1xMiniDP / 4xUSB3.0 / WIFI AC / BT4.1

Características detalladas del producto:

Essentials
Status Launched
Launch Date Q4'15
Expected Discontinuance See Roadmap
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
nº of Internal Drives Supported 2
Embedded Options Available No
Lithography 14 nm
TDP 15 W
DC Input Voltage Supported 12-19 VDC
Description Other features: Includes SDXC card slot
Processor Included Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-1866/2133 1.2V SO-DIMM
Max nº of Memory Channels 2
Max Memory Bandwidth 29.9 GB/s
Max nº of DIMMs 2
ECC Memory Supported  No
Graphics Specifications
Integrated Graphics  Si
Graphics Output Mini-DP 1.2 HDMI 1.4b
Intel® Clear Video Technology Si
nº of Displays Supported  3
Expansion Options
PCI Express Revision Gen3
PCI Express Configurations  M.2 slot with PCIe x4 lanes
I/O Specifications
USB Revision 2.0 3.0
nº of USB Ports 6
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total nº of SATA Ports 2
Max nº of SATA 6.0 Gb/s Ports 2
RAID Configuration 2.5" SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R+mic (F)
Integrated LAN 10/100/1000
Integrated Wifi Intel® Wireless-AC 8260 + BT 4.1
Integrated Bluetooth Si
Package Specifications
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d)  Si
Intel® vPro Technology  No
TPM No
Intel® HD Audio Technology Si
Intel® Rapid Storage Technology Si
Intel® Virtualization Technology (VT-x)  Si
Intel® Data Protection Technology
Intel® AES New Instructions Si

Características técnicas del producto:

  • BLUETOOTH: SI 4.1
  • CONECTORES: USB 3.0 x 4, HDMI x 1, Mini DisplayPort x 1, audio
  • F.A.: SI
  • FORMATO: PICO-ITX
  • GRAFICA: INTEL HD Graphics 520
  • IMAGEN SALIDA: 1xHDMI, 1xminiDP
  • MEMORIA MAXIMA: 32 GB
  • MICROPROCESADOR: INTEL i3-6100U
  • MICROPROCESADOR INTEGRADO: INTEL i3-6100U
  • MULTI-GRAFICA: NO
  • N BANCOS DE MEMORIA: 2
  • N CONEXIONES SATA: 1
  • N USB 2.0: 2 INTERNOS
  • N USB 3.0: 4
  • PCI: MINI PCIe FULL LENGTH
  • RAID: SI
  • SATA 3GB/s: 0
  • SATA 6GB/s: 1
  • TECNOLOGIA DE MEMORIA: DDR4L SODIMM
  • TIPO DE RAID: 0,1
  • TIPO MEMORIA: DDR4LV
  • VELOCIDAD MEMORIA: 2 X DDR4L 1866/2133
  • WEBCAM: NO
  • WIFI: 802.11 ac
