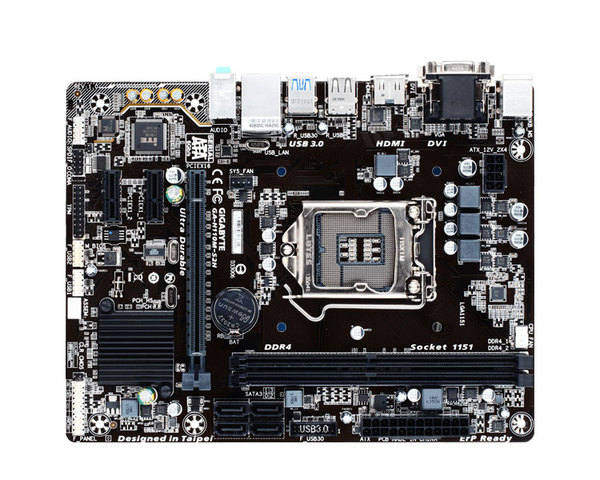

PLACA BASE H110M-S2H GIGABYTE

Precio unitario: 58,26€

Selecciona cantidad:

PRECIO TOTAL: 58,26€

Características del producto:

Código: 19392
LGA1151 / H110 / VGA / DVI-D / HDMI / MATX

Características detalladas del producto:

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CPU.
    .
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
    2. .
  2. L3 cache varies with CPU
    3. .
. (Please refer ''CPU Support List'' for more information.)
Chipset.
    .
  1. Intel® H110 Express Chipset
    2. .
.
Memory.
    .
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. .
  2. Dual channel memory architecture
    3. .
  3. Support for DDR4 2133 MHz memory modules
    4. .
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. .
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. .
. (Please refer ''Memory Support List'' for more information.)
Onboard Graphics.
    .
  1. Integrated Graphics Processor - Intel® HD Graphics support:. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz. * The DVI-D port does not support D-Sub connection by adapter.. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz. * Support for HDMI 1.4 version.
    2. .
  2. Support for up to 2 displays at the same time
    3. .
  3. Maximum shared memory of 512 MB
    4. .
.
Audio.
    .
  1. Realtek® ALC887 codec
    2. .
  2. High Definition Audio
    3. .
  3. 2/4/5.1/7.1-channel. * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. .
  4. Support for S/PDIF Out
    5. .
.
LAN.
    .
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    2. .
.
Expansion Slots.
    .
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16). (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    2. .
  2. 2 x PCI Express x1 slots. (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
    3. .
.
Storage InterfaceChipset:.
    .
  1. 4 x SATA 6Gb/s connectors
    2. .
.
USBChipset:.
    .
  1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. .
  2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    3. .
.
Internal I/O Connectors.
    .
  1. 1 x 24-pin ATX main power connector
    2. .
  2. 1 x 8-pin ATX 12V power connector
    3. .
  3. 4 x SATA 6Gb/s connectors
    4. .
  4. 1 x CPU fan header
    5. .
  5. 1 x system fan header
    6. .
  6. 1 x front panel header
    7. .
  7. 1 x front panel audio header
    8. .
  8. 1 x S/PDIF Out header
    9. .
  9. 1 x USB 3.0/2.0 header
    10. .
  10. 2 x USB 2.0/1.1 headers
    11. .
  11. 1 x Trusted Platform Module (TPM) header
    12. .
  12. 1 x serial port header
    13. .
  13. 1 x Clear CMOS jumper
    14. .
.
Back Panel Connectors.
    .
  1. 1 x PS/2 mouse port
    2. .
  2. 1 x PS/2 Keyboard port
    3. .
  3. 1 x D-Sub port
    4. .
  4. 1 x DVI-D port
    5. .
  5. 1 x HDMI port
    6. .
  6. 2 x USB 3.0/2.0 ports
    7. .
  7. 4 x USB 2.0/1.1 ports
    8. .
  8. 1 x RJ-45 port
    9. .
  9. 3 x audio jacks (Line In, Line Out, Mic In)
    10. .
.
I/O Controller.
    .
  1. iTE® I/O Controller Chip
    2. .
.
H/W Monitoring.
    .
  1. System voltage detection
    2. .
  2. CPU/System temperature detection
    3. .
  3. CPU/System fan speed detection
    4. .
  4. CPU/System overheating warning
    5. .
  5. CPU/System fan fail warning
    6. .
  6. CPU/System fan speed control. * Whether the fan speed control function is supported will depend on the cooler you install.
    7. .
.
BIOS.
    .
  1. 1 x 64 Mbit flash
    2. .
  2. Use of licensed AMI UEFI BIOS
    3. .
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    4. .
.
Unique Features.
    .
  1. Support for APP Center. * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.. 3D OSD. @BIOS. AutoGreen. Cloud Station. EasyTune. Fast Boot. Smart TimeLock. Smart Keyboard. Smart Backup. System Information Viewer. USB Blocker
    2. .
  2. Support for Q-Flash
    3. .
  3. Support for Smart Switch
    4. .
  4. Support for Xpress Install
    5. .
.
Bundle Software.
    .
  1. Norton® Internet Security (OEM version)
    2. .
  2. cFosSpeed
    3. .
.
Operating System.
    .
  1. Support for Windows 10/8.1 64-bit
    2. .
  2. Support for Windows 7 32-bit/64-bit. * Please download the ''Windows USB Installation Tool'' from GIGABYTE's website and install it before installing Windows 7.
    3. .
.
Form Factor.
    .
  1. Micro ATX Form Factor; 22.6cm x 17.4cm
    2. .
.
Remark.
    .
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. .
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    3. .
.
.

Características técnicas del producto:

  • CHIPSET: INTEL H110
  • FORMATO: MICRO ATX
  • HDMI: SI
  • IMAGEN SALIDA: GRAFICOS EN CPU, D-SUB, DVI , HDMI
  • MEMORIA MAXIMA: 32 GB
  • N BANCOS DE MEMORIA: 2
  • N CONEXIONES SATA: 4
  • N USB 2.0: 4 TRASEROS, 2 INTERNOS
  • N USB 3.0: 2 TRASEROS, 1 INTERNO
  • PCI: 1 PCIe x16, 2 PCIe x1
  • SATA 3GB/s: 0
  • SATA 6GB/s: 4
  • SOCKET: INTEL LGA1151
  • SOPORTA OPTANE: NO
  • TECNOLOGIA DE MEMORIA: DDR4
  • USB 3.0: SI
  • USB3.0 INTERNO: SI
