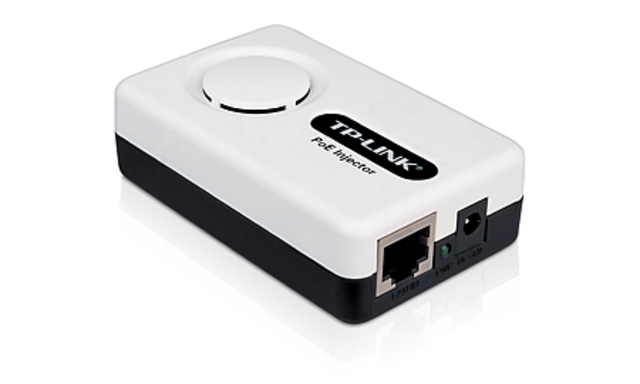

. PoE Injector. TL-POE150S. . The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.. . . - IEEE 802.3af compliant
. - Delivers power up to 100 meters
. - Auto-determine the necessary power requirements
. - Plug-and-Play, requires no configuration
. - External power adapter supply
. . . . . HARDWARE FEATURES | . . . . . Interface | . 1 10/100 RJ45 Port. AUTO Negotiation/AUTO MDI/MDIX | . . . Network Media | . 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m). EIA/TIA-568 100Ω STP (maximum 100m). 100BASE-TX: UTP category 5, 5e cable (maximum 100m). EIA/TIA-568 100Ω STP (maximum 100m) | . . . LED Indicator | . PWR | . . . Dimensions ( W x D x H ) | . 3.2*2.0*0.9 in.(81*52*24 mm) | . . . Power Supply | . 15.4W (Max. 48VDC) | . . . . . . . SOFTWARE FEATURES | . . . . . Basic Function | . Compatible With IEEE 802.3af Compliant PDs. Delivers Power Up To 100 Meters. Auto-Determine The Necessary Power Requirements. | . . . . . . . OTHERS | . . . . . Certification | . FCC, CE | . . . Environment | . Operating Temperature: 0?~40? (32?~104?). Storage Temperature: -40?~70? (-40?~158?). Operating Humidity: 10%~90% non-condensing. Storage Humidity: 5%~90% non-condensing | . . . . . El inyectorTL-POE150S de TP-Link es ideal para equipar las cámaras IP, teléfonos IP o cualquier otro dispositivo no POE ya que permite aumentar la red en los lugares que no estén equipados con una toma de corriente. . . Plug and Play, el TL-POE150S es compatible con IEEE 802.3af y puede alimentar todas las unidades externas de red respetando esta norma.. . . | .
.
