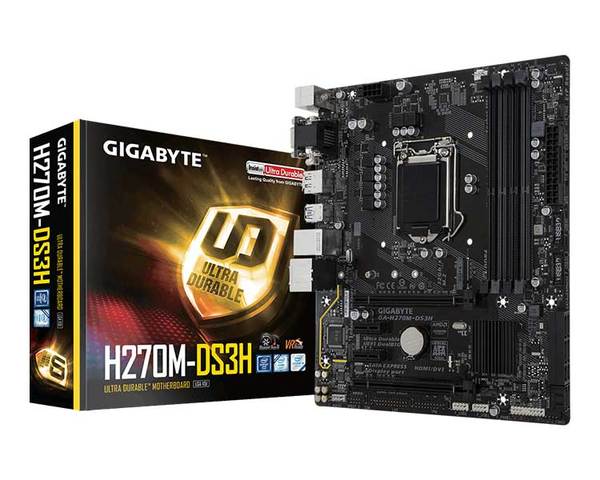

| CPU |
| 1. Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
| 2. L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) |
| |
| Chipset |
| 1. Intel® H270 Express Chipset |
| |
| Memory |
| 1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory |
| * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. |
| 2. Dual channel memory architecture |
| 3. Support for DDR4 2400* / 2133 MHz memory modules |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 6. Support for Extreme Memory Profile (XMP) memory modules |
| * To support 2400 MHz or XMP memory, you must install a 7th generation processor. |
| (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
| Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| 2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| * The DVI-D port does not support D-Sub connection by adapter. |
| 3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| * Support for DisplayPort 1.2 version. |
| 4. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz |
| * Support for HDMI 1.4 version. |
| Support for up to 3 displays at the same time |
| Maximum shared memory of 1 GB |
| |
| Audio |
| 1. Realtek® ALC887 codec |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| 4. Support for S/PDIF Out |
| |
| LAN |
| 1. Realtek® GbE LAN chip (10/100/1000 Mbit) |
| |
| Expansion Slots |
| 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| 2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| 3. 2 x PCI Express x1 slots |
| (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Storage Interface |
| Chipset: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) |
| 2. 2 x SATA Express connectors |
| 3. 6 x SATA 6Gb/s connectors |
| 4. Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| |
| Multi-Graphics Technology |
| 1. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies |
| USB |
| Chipset: |
| 1. 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| 2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| |
| Internal I/O Connectors |
| 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x M.2 Socket 3 connector |
| 4. 2 x SATA Express connectors |
| 5. 6 x SATA 6Gb/s connectors |
| 6. 1 x CPU fan header |
| 7. 3 x system fan headers |
| 8. 1 x front panel header |
| 9. 1 x front panel audio header |
| 10. 1 x S/PDIF Out header |
| 11. 2 x USB 3.1 Gen 1 headers |
| 12. 2 x USB 2.0/1.1 headers |
| 13. 1 x Trusted Platform Module (TPM) header |
| 14. 1 x serial port header |
| 15. 1 x parallel port header |
| 16. 1 x Clear CMOS jumper |
| |
| Back Panel Connectors |
| 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x D-Sub port |
| 3. 1 x DVI-D port |
| 4. 1 x DisplayPort |
| 5. 1 x HDMI port |
| 6. 4 x USB 3.1 Gen 1 ports |
| 7. 2 x USB 2.0/1.1 ports |
| 8. 1 x RJ-45 port |
| 9. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| |
| I/O Controller |
| 1. iTE® I/O Controller Chip |
| |
| H/W Monitoring |
| 1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Overheating warning |
| 5. Fan fail warning |
| 6. Fan speed control |
| * Whether the fan speed control function is supported will depend on the fan you install. |
| |
| BIOS |
| 1. 2 x 64 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. Support for DualBIOS™ |
| 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| |
| Unique Features |
| 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| 3D OSD |
| @BIOS |
| Ambient LED |
| AutoGreen |
| BIOS Setup |
| Color Temperature |
| Cloud Station |
| EasyTune |
| Easy RAID |
| Fast Boot |
| Game Boost |
| ON/OFF Charge |
| Platform Power Management |
| Smart Backup |
| Smart Keyboard |
| Smart TimeLock |
| System Information Viewer |
| USB Blocker |
| V-Tuner |
| 2. Support for 3TB+ Unlock |
| 3. Support for Q-Flash |
| 4. Support for Xpress Install |
| |
| Bundle Software |
| 1. Norton® Internet Security (OEM version) |
| 2. Intel® Optane™ Memory Ready |
| 3. cFosSpeed |
| |
| Operating System |
| 1. Windows® 10 64-bit (for 7th Generation Intel® Processors) |
| 2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) |
| * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
| |
| Form Factor |
| 1. Micro ATX Form Factor; 24.4cm x 21.5cm |
