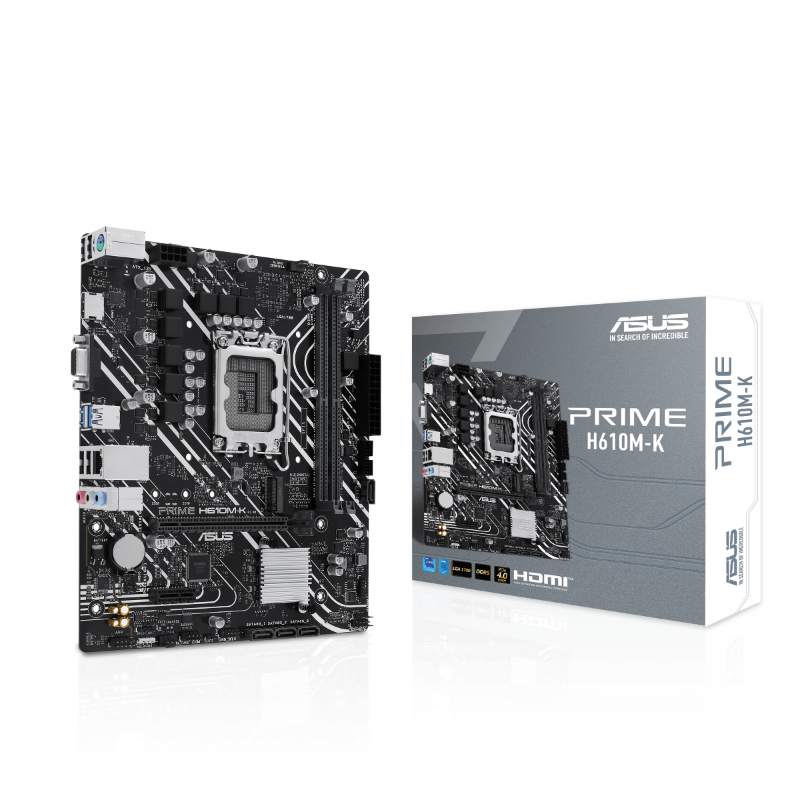

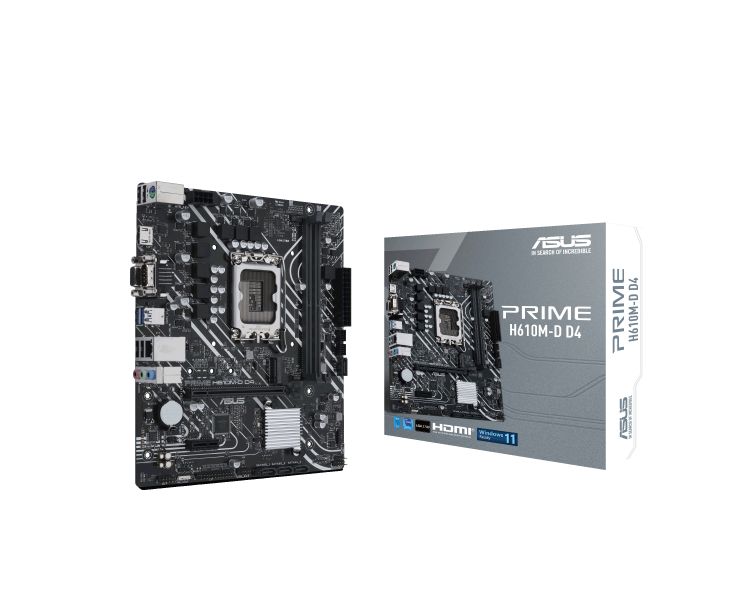

Características detalladas del producto:

Especificaciones:. . CPU. . Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. Chipset. . Intel® H610 Chipset. Memory. . 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.. Graphics. . 1 x D-Sub port. 1 x HDMI® port**. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports 4K@60Hz as specified in HDMI 2.1.. Expansion Slots. . Intel® 12th Gen Processors. 1 x PCIe 4.0 x16 slot. Intel® H610 Chipset. 1 x PCIe 3.0 x1 slot. Storage. . Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports. Intel® H610 Chipset. M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes). 4 x SATA 6Gb/s ports. * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.. Ethernet. . 1 x Realtek 1Gb Ethernet. USB. . Rear USB (Total 6 ports). 2 x USB 3.2 Gen 1 ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 4 ports). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 1 x USB 2.0 header supports additional 2 USB 2.0 ports. Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. Back Panel I/O Ports. . 2 x USB 3.2 Gen 1 ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). 1 x D-Sub port. 1 x HDMI® port. 1 x Realtek 1Gb Ethernet port. 3 x Audio jacks. 1 x PS/2 Keyboard/Mouse combo port. Internal I/O Connectors. Fan and Cooling related. 1 x 4-pin CPU Fan header. 1 x 4-pin Chassis Fan header. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 1 x M.2 slot (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 1 x USB 2.0 header supports additional 2 USB 2.0 ports. Miscellaneous. 1 x RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x S/PDIF Out header. 1 x Speaker header. 1 x SPI TPM header (14-1pin). 1 x 10-1 pin System Panel header. . BIOS. . 128 Mb Flash ROM, UEFI AMI BIOS. Manageability. . WOL by PME, PXE. Form Factor. mATX Form Factor. 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Características técnicas del producto:

Chipset: Intel H610
Formato: Micro ATX
Hdmi: Si
Imagen Salida: Graficos en CPU, D-SUB, HDMI
Memoria Maxima: 64
Microprocesador Integrado: No
Multi-Grafica: No
N Bancos De Memoria: 2
N Conexiones SATA: 4
N USB 2.0: 4 Traseros, 2 Internos
N USB 3.2 Gen1: 2 Traseros, 2 Internos
Pci: 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Raid: No
SATA 6Gb/S: 4
Socket: Intel LGA 1700
Soporta Optane: No
Tecnologia De Memoria: DDR4
Tipo De Raid: No
USB3.1 Interno: Si

Precio unitario: 103,31€
